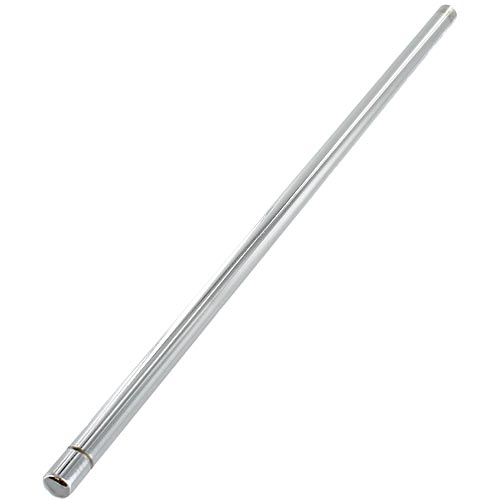

Soft Iron Rod
Share this product:
9 customer reviewsThis soft iron rod is perfect for applications involving changing magnetic flux in electromagnets, electric motors, generators and transformers. Use it in science projects, magnet demonstrations and teaching magnetic concepts in the classroom setting.
Features:
- Soft iron rod
- Measures 20 cm (8 inches) long and 5mm (0.2 inches) diameter
- Good for applications involving magnetic flux
Specifications:
Chemical Composition
The following table shows the chemical composition of AISI 1008 carbon steel.
|
Element |
Content (%) |
|
Iron, Fe |
99.31-99.7 % |
|
Manganese, Mn |
0.30-0.50 % |
|
Carbon, C |
0.10 % |
|
Sulfur, S |
0.050 % |
|
Phosphorous, P |
0.040 % |
Physical Properties
The physical properties of AISI 1008 carbon steel are outlined in the following table.
|
Properties |
Metric |
Imperial |
|
Density (composition 0.06% C, 0.38% Mn, 0.01% Si, annealed at 925°C) |
7.872 g/cm3 |
0.2844 lb/in³ |
Mechanical Properties
The mechanical properties of cold drawn AISI 1008 carbon steel are tabulated below.
|
Properties |
Metric |
Imperial |
|
Tensile strength |
340 MPa |
49300 psi |
|
Yield strength (depending on temper) |
285 MPa |
41300 psi |
|
Elastic modulus |
190-210 Gpa |
27557-30458 ksi |
|
Bulk modulus (typical for steel) |
200 GPa |
29000 ksi |
|
Shear modulus (typical for steel) |
80.0 GPa |
11600 ksi |
|
Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation at break (in 50 mm) |
20% |
20% |
|
Reduction of area |
45% |
45% |
|
Hardness, Brinell |
95 |
95 |
|
Hardness, Knoop (converted from Brinell hardness) |
113 |
113 |
|
Hardness, Rockwell B (converted from Brinell hardness) |
55 |
55 |
|
Hardness, Vickers (converted from Brinell hardness) |
98 |
98 |
|
Machinability (based on AISI 1212 steel as 100 machinability) The machinability of group I bar, rod, and wire products can be improved by cold drawing) |
55 |
55 |
Thermal Properties
The thermal properties of AISI 1008 carbon steel are tabulated below.
|
Properties |
Metric |
Imperial |
|
Thermal expansion co-efficient (@0.000-100°C/32-212°F) |
12.6 µm/m°C |
7 µin/in°F |
|
Thermal conductivity (composition of 0.06% C, 0.4% Mn; 0°C ) |
65.2 W/mK |
452 BTU in/hr.ft².°F |
18 +
8.00 x 0.20 x 0.20 inches
20.32cm x 0.51cm x 0.51cm
0 lb 3 oz
0.07 kg
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Customer Reviews
Product as espectedAurunima from USA, PA, Philadelphia
The item was sturdy and as described. Slightly long shipping time.
Soft Iron RodsC.L. from Clinton, CT
Product was as specified in the description. Although if it's important dia is 5.1mm.
just what I neededJack from Alexandria VA
The rod was excellent in every way. Dimensions were on spec and were uniform along the length. The iron worked perfectly in a coil as a demonstration of solenoid action
Bill L. from USA, Slatington, PA
As advertised! Fast shipping!
Great Purchase!Megan from Wilmington, NC
My son needed these rods for a science fair project. They are great! You may need to cut them to get them into anything smaller than a large Mason jar.
Soft Iron RodKallista Skye from USA, WV, Martinsburg
This item arrived in a timely manner, and was well-packaged. It came with a cute little table of the elements which I foolishly damaged by opening the product with scissors, however.
Not Bad, Good Magnetic Permeability for the PriceAlexander Ogle from U.S.A., OR, McMinnville
This works great for making an electromagnet. I was able to get a field of 10.8 mT at one end of a solenoid running just 367 mA using this as a core. Compare that to the field of 0.12 mT (running 314 mA) I got without the core being present (the solenoid had 255 turns for 22.9cm of length). I called XUMP to see if they knew the relative magnetic permeability for these cores, but they said this listing gave everything they knew, so I ordered 6 of them and decided to measure the relative permeability myself. I measured the relative magnetic permeability to be 86.00 +/- 3.61 You can see my data at the link below, which lists the equipment I used as well. For my purposes, I’ll be needing a relative magnetic permeability of something closer to 1000, but these worked nicely to play around with. https://drive.google.com/file/d/0ByEzSICKIOPkYkJ4SVFJTzg1b1U/view?usp=sharing Questions about the experimental methods can be addressed to aogle@linfield.edu
Good productHilary from Reno, NV
Bought several of these to make strong electromagnets. This is perfect for that. They are about 8" long. It's difficult to find pure iron these days, and this was a good price for my application.
Perfect Raw MaterialKevin Morrow from United States,Kansas,Columbus
Perfect raw iron rod for electromagnetic applications!
