Mini Digital Voltmeter - 0V-30V - 3-Wire

Item#: 17081   5 star rating 1 customer reviews
Price: $1.95 /each
$1.75 /each (buy 10+)
IN STOCK Ships within 1-2 business days
from our Lakewood, CA warehouse.
Add to cart to see shipping cost.

We have 34 pcs in stock.
QTY:


With this affordable mini LCD digital voltmeter you can measure voltages from 0V to 30V with 0.01V precision. You will however have to provide a power supply (from 4V to 30V DC) which can be three or four AA batteries in series or a single 9V battery or an old DC adapter.

Specifications:

  • Measuring range: 0.00V-30.0V DC
  • Power supply required (not included) 4V-30V DC
  • Maximum input 30.0V DC (anything higher will result in permanent voltmeter damage)
  • Tolerance: ± 1%
  • Input impedance> 100K Ohms
  • Working current: approx 20mA
  • Refresh speed: approx 300ms
  • Display mode: three 0.56 inch LED digital tubes
  • Display color: green
  • Lead wires length: 15cm
  • Dimensions 22 x 14 x 9 mm
  • Includes two mounting holes

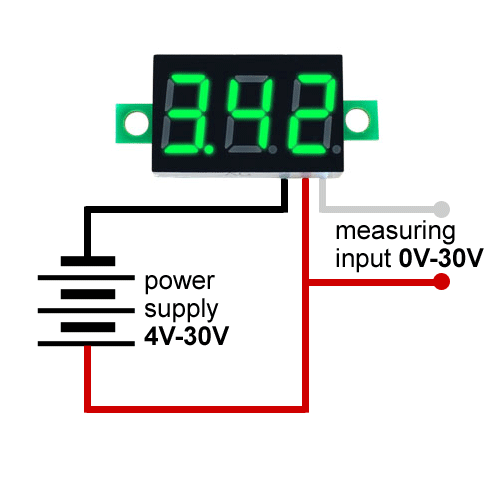

Connection instructions:

  • see photo on the left
  • connect your power supply (4-30V DC) to black (-) and red (+) wires
  • measure your input voltage accross the white and red wires
