Digital Pocket Oscilloscope - 0-200KHz Photo 1 Digital Pocket Oscilloscope - 0-200KHz Photo 2
Share this product:
Robotics & Electronics > Test & Measurement

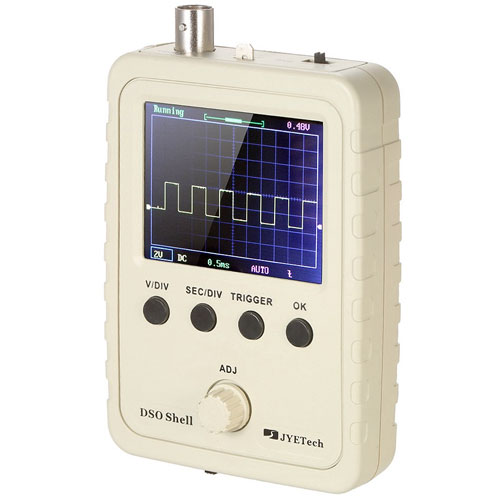

Digital Pocket Oscilloscope - 0-200KHz

Item#: 16715
SALE PRICE: $79.99 /each
List Price:$149.99 46% OFF limited time deal
IN STOCK Ships in 1-2 work days
from our California warehouse.
Add to cart to see shipping cost.

Only 1 left in stock - order soon.
QTY:


This handy digital oscilloscope displays and analyzes the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. The meter measures signals from 0 to 200 KHz.  Perfect for use in the lab or classroom.

Features:

  • Digital oscilloscope displays and analyzes the waveform of electronic signals
  • Measures from 0 to 200 KHz
  • Auto/Normal/Single trigger modes (rising or falling edge)
  • Freeze waveform display at any time with HOLD function
  • 2.4 inch color LCD display with 320x240 resolution
  • High sensitivity: 5mV/div - 20V/div (higher than DSO138)
  • Perfect for use in the lab or classroom
  • Portable and versatile

Specifications:

  • Analog bandwidth: 0 - 200 KHz
  • Sensitivity range: 5mV/div - 20V/div
  • Max input voltage: 50V/div (1X probe)
  • Input impedance: 1Mohms/20pF
  • Resolution: 12 bits
  • Coupling modes: DC / AC / GND
  • Maximum real-time sampling rate: 1MSa/s
  • Time base range: 10us/div - 500s/div
  • Trigger modes: Auto, Normal and Single
  • Trigger position: Center or Buffer
  • Number of channels: 1
  • Supply voltage: 9V DC (power adapter not included - see related products)
  • Size: 115 x 75 x 22 mm (5.7 x 3.94 x 1.45 inches)
  • Weight: 89g / 3.14oz

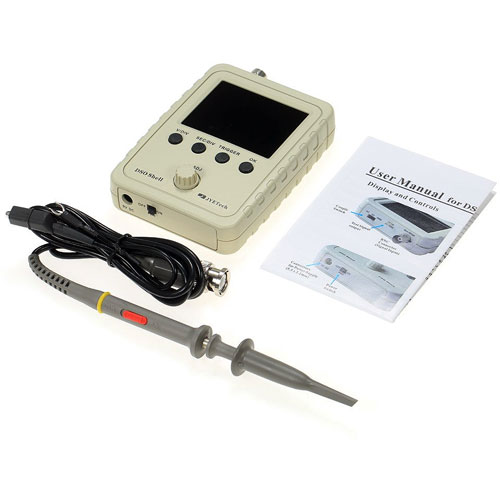

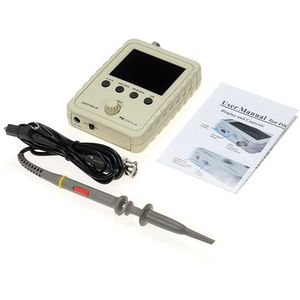

Included:

  • Digital pocket oscilloscope
  • 1X Probe
  • User guide


Age:
18 +
Approx. Ship Size:
Weight:
0 lb 15 oz
0.43 kg

Warning:
CHOKING HAZARD
Small parts. Not for children under 3 yrs.
