Adjustable DC Switching Power Supply - 0-30V 5A

This switching adjustable DC power supply is perfect for use in classrooms or laboratories.  The unit produces variable 0 to 30V DC at up to a maximum of 5A, and features a clean and easy-to-read digital display. It also has CC (current limiting) and CV (voltage limiting) modes, and is built from high-quality components.

Features:

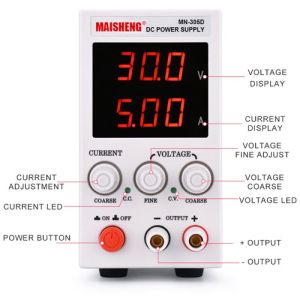

• LCD digital display for voltage and current
• Adjustment of voltage (coarse and fine) and current (coarse)
• Fuse-protected
• Current-limiting protection mode
• Voltage-limiting protection mode
• Insulated plugs
• DC Voltage output connection cables included (banana to alligator clips)
• 110V power cable included

Specifications:

• Output voltage: 0-30V adjustable
• Output current: 0-5A adjustable
• Resolution: Voltage: 0.1V Current: 0.1A
• Voltage and Current Stability: ≤ 0.2%
• Load Stability: CC ≤ 0.5% CV ≤ 0.5%
• Accuracy: ± 1%
• Ripple Noise: ≤ 0.5%
• Power Supply Dimensions:  8.86 x 5.43 x 2.83 inches ( 22.5 x 13.8 x 7.2 cm )
• Power Supply Weight: 2.51 lbs ( 1.14 kg )
